SQL Workbench

Hosted Dolt has a built-in SQL Workbench with a DoltHub-like UI. This allows users to browse their data, as well as utilize Dolt's powerful version control features like diffs and commit logs. When you enable writes, you can also access the same features on the Hosted Workbench that make DoltHub easy to use as a collaboration tool among users of varying levels of SQL and Git knowledge, including cell buttons and pull requests.

Getting started with the workbench

It's easy to get started browsing and updating data in your Hosted database with the SQL Workbench for both new and existing deployments.

1. Add the workbench database users

You must give access to certain database users in order to use the workbench. You can learn more about our workbench authentication model here.

For new deployments, this is as simple as checking the "Create database users for the SQL Workbench" checkbox in the Create Deployment form.

If you create a deployment without checking that box, you can find instructions for adding the users manually in the Workbench tab of your deployment.

2. Accessing the read-only workbench

The workbench is read-only by default. If the hosted-ui-reader user exists and you have at least one database, you should see the database(s) in the "Available Databases" section of your Workbench tab, as well as the "Launch SQL Workbench" button at the top.

You can then click on either button to browse your database in read-only mode.

3. Enabling writes

All you need to do to enable writes is to check the "Enable writes" checkbox in the Workbench tab of your deployment page and click Update. Assuming the hosted-ui-admin user has already been added, you will be able to immediately make changes to your data using the workbench.

4. Making a change using the workbench

You can make changes to your data using the workbench using the SQL console or cell buttons. The cell buttons are a beginner-friendly way to make updates.

First, create a new branch. Changes from the workbench are reflected immediately in your database, unlike DoltHub where you need to manually update your local Dolt with any changes using dolt pull. Creating changes on a branch lets you test a change without affecting main.

Next, use the "Edit cell value" cell button to change a cell.

This will open a text input where you can make changes. Once you're done, click the check.

This will generate a SQL update query. You don't need to know SQL to make updates using the workbench, but it can help you learn SQL along the way!

DoltHub uses workspaces to stage changes made from the web and creates a commit on the workspace for each executed SQL query. Hosted works more like Dolt where each change is added to the working set. When there are uncommitted changes you'll see the link to the diff with the option to create a commit.

You can make as many changes as you want to the new branch before committing. Adding a new row is also simple using the Add a row button at the bottom of the screen. When you're done making changes create a commit on your branch.

You will now see a commit for this change in the Commit Log for the branch.

5. Creating a pull request

Now create a pull request to submit your change for review. Navigate to the Pull Requests tab and click on "Create Pull Request". Choose the new branch you just updated as the "From branch" and add a title and description.

The pull request will look like this.

And you can click "View diff" to see a detailed view of the proposed changes.

Pull request diff

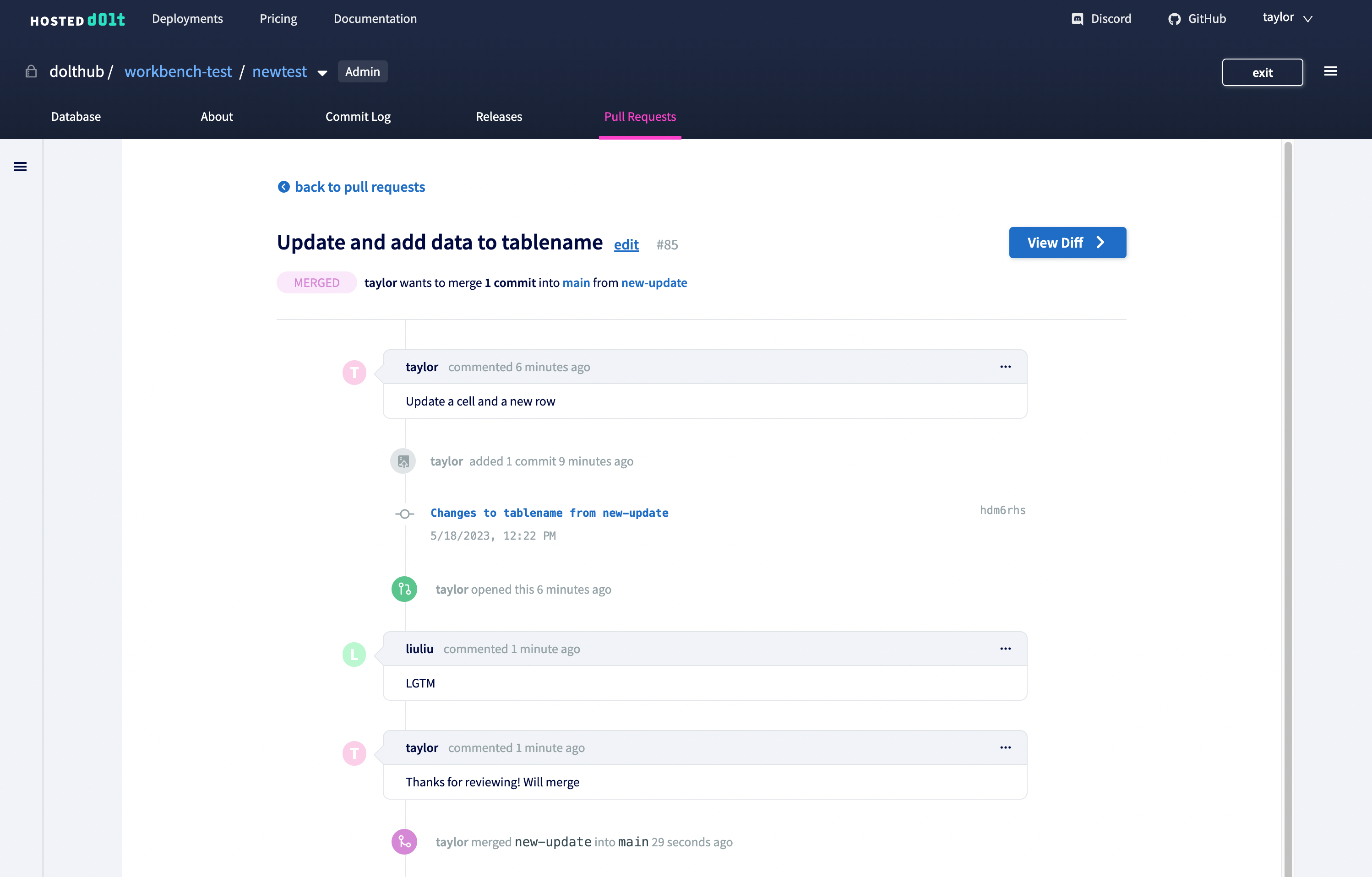

Send this pull request to some teammates and they can comment to request changes or approve. Once approved, merge your branch.

You will see the new commit reflected in the Commit Log for the main branch, as well as in any connected MySQL client.

The Hosted Workbench vs DoltHub

There are two ways to use Dolt. You can run Dolt offline, treating data and schema like source code in the same way you'd use Git. Or you can run Dolt online, like you would PostgreSQL or MySQL. DoltHub, similar to GitHub, is for collaborating offline on Dolt databases, while Hosted is for running online production databases.

DoltHub is a hosted Dolt remote. It uses doltremoteapi, a service that wraps Dolt's storage layer's interface, which allows the website to interact with Dolt databases that are stored in AWS S3. When you view a page on DoltHub, its API asks doltremoteapi for its storage layer interface, and uses that to query Dolt data. When you make a change on DoltHub it's not automatically reflected in other remotes. You must use clone, push, pull, or fetch to sync different copies of your database.

Hosted is a cloud-hosted, running Dolt database that you can connect to with any MySQL client over the internet. The SQL workbench on Hosted uses a Node.js MySQL client to connect to a deployment's running SQL server, utilizing Dolt's SQL version control features to display data in a similar to way to DoltHub. But unlike DoltHub, changes you make from a connected client are reflected immediately in other clients without any manual syncing.

Implementation Notes

Authentication model

In order to implement the database workbench, we needed some API machinery to access the SQL server running on a deployed hosted instance, and we needed the API to authenticate to the SQL server. Before this feature, Dolt only supported username/password authentication.

One way we could have handled this was to deploy the Hosted instances with a pre-configured username and password, which the API could use to access the database. However, these credentials would have been harder to make short lived and access to the database with the credentials would not have necessarily come with progeny information.

Instead, we built an authentication mechanism into Dolt which allows user accounts to authenticate using signed JWTs. In turn, our Hosted API was extended to issue signed JWTs for accessing either the read-only account associated with UI (hosted-ui-reader) or the admin account (hosted-ui-admin), which is available to deployment admins when writes are enabled. When someone attempts to connect to the Hosted SQL server, the GraphQL server calls Hosted API to get short-term credentials, and then connects to the Hosted SQL server using them.

The JWT-based authentication scheme has the following properties:

1. Credentials are non-forgeable.

2. Credentials are short-lived.

3. Credential creation and use is auditable – logs can record when they are minted, as a result of which requests, and when they are used.

4. Users can configure if these credentials are allowed and for which accounts.

How it was built

The Hosted SQL workbench is modeled after the DoltHub database page. Similar to the Hosted website, the DoltHub website is a Next.js application that communicates with a GraphQL server, which provides a translation layer for DoltHub API. DoltHub API is a Golang service providing GRPC endpoints which drive the website.

Before we started this project we discussed whether we should create a React component library that we can share between Hosted and DoltHub. Most of the original UI for the Hosted workbench was going to be the same as the DoltHub database page. We ultimately prioritized time and decided to hard-fork the DoltHub components to use for the Hosted workbench. As the Hosted Workbench has developed away from DoltHub to better accommodate the features of an online product, this has proven to be the right decision. Once a month we manually update the Hosted Workbench with any new DoltHub features.

To make that process easier, we wanted to maintain the same GraphQL schema for the queries used for DoltHub and Hosted. Unlike DoltHub's GraphQL server which gets database metadata from our DoltHub API services, our Hosted GraphQL server would directly communicate with the SQL server running on the Hosted instance. While the structure of the requests and returned objects would be mostly identical, the rest of logic for the UI needed to be rewritten. The Hosted GraphQL server needed a new service that could manage multiple database connections and the database metadata query logic needed to be written in SQL using Dolt system tables and functions.

You can learn more about the architecture of the Hosted workbench and how we use the RGD (React + GraphQL + Dolt) stack in this blog.

Comparing DoltHub and Hosted GraphQL servers

Both DoltHub and the Hosted SQL workbench have this dropdown that lists the database branches. I'm going to use it as a simple example to convey the changes that needed to be made to implement the DoltHub UI against the Hosted SQL servers.

The ListBranchNames query is straightforward. You give it the owner and database names and it returns a list of all the branches in the database as strings. On DoltHub, ListBranchNames is a GRPC endpoint that communicates with DoltHub API (a Golang service) to get branch names from the Dolt storage layer, also called a ChunkStore, which is stored in AWS S3. This service first validates the request to ensure the calling user has permission to see the database and that the database exists on DoltHub. It then uses the read-only chunk store interface to query Dolt for the branch data. This looks something like:

func (impl *repositoryDataUseCaseImpl) ListBranchRefs(ctx context.Context, owner, repoName string) ([]ref.DoltRef, error) {
  cs, sizer, err := impl.csFactory(ctx, owner, repoName, true)
	if err != nil {
		return nil, err
	}

	readOnlyCs := dhdolt.NewReadOnlyChunkStore(cs)
	doltDatabase := &DoltDatabase{doltdb.DoltDBFromCS(readOnlyCs), readOnlyCs, sizer, owner, repoName}

	branchRefs, err := doltDatabase.GetBranches(ctx)
	if err != nil {
		return nil, err
	}

	return branchRefs, nil
}

In our DoltHub GraphQL server, we have a branch resolver (we use Apollo to build our GraphQL server in Typescript) that uses this GRPC endpoint to get the branch names:

  @Query(_returns => BranchNamesList)
  async branchNames(
    @Context() context,
    @Args() args: RepoArgs,
  ): Promise<BranchNamesList> {
    const api = this.apiProvider.getClient(context);
    const req = new ListBranchNamesRequest();
    req.setRepositoryName(RepositoryUtils.rn.fromParams(args));
    const res = await api.listBranchNames(req);
    return { list: res.getBranchNamesList() };
  }

Since we need to communicate directly with the SQL server to list the branches for the Hosted SQL workbench, the resolver looks different (we use typeorm with Apollo in Hosted GraphQL server). We need to first get the correct database connection, grab a connection from the connection pool, and then use the dolt_branches system table to get the branch names.

  @Query(_returns => BranchNamesList)
  async branchNames(
    @Context() context,
    @Args() args: RepoArgs,
  ): Promise<BranchNamesList> {
    // Gets (or adds if doesn't exist) the database connection
    const conn = await this.dbConnect.connection(context, args);
    // Takes a single connection from the connection pool
    const queryRunner = conn.dataSource.createQueryRunner();
    await queryRunner.connect();
    const branches = await queryRunner.query("SELECT * FROM dolt_branches");
    await queryRunner.release();
    return {
      list: branches.map(b => b.name),
    };
  }

This process is similar for querying other database metadata, but unlike branches which are not revision-dependent, metadata like tables and commits need to be queried at a certain point in the commit history. We make heavy use of revision databases to make this work.

For example, to list tables for a branch, we can use an AS OF clause: SHOW TABLES AS OF 'feature_branch'. Or for user-run SQL queries we can use a USE statement to specify the branch before the query is run, like:

USE `museum-collections/main`;
SELECT * FROM objects WHERE category="drawing";
